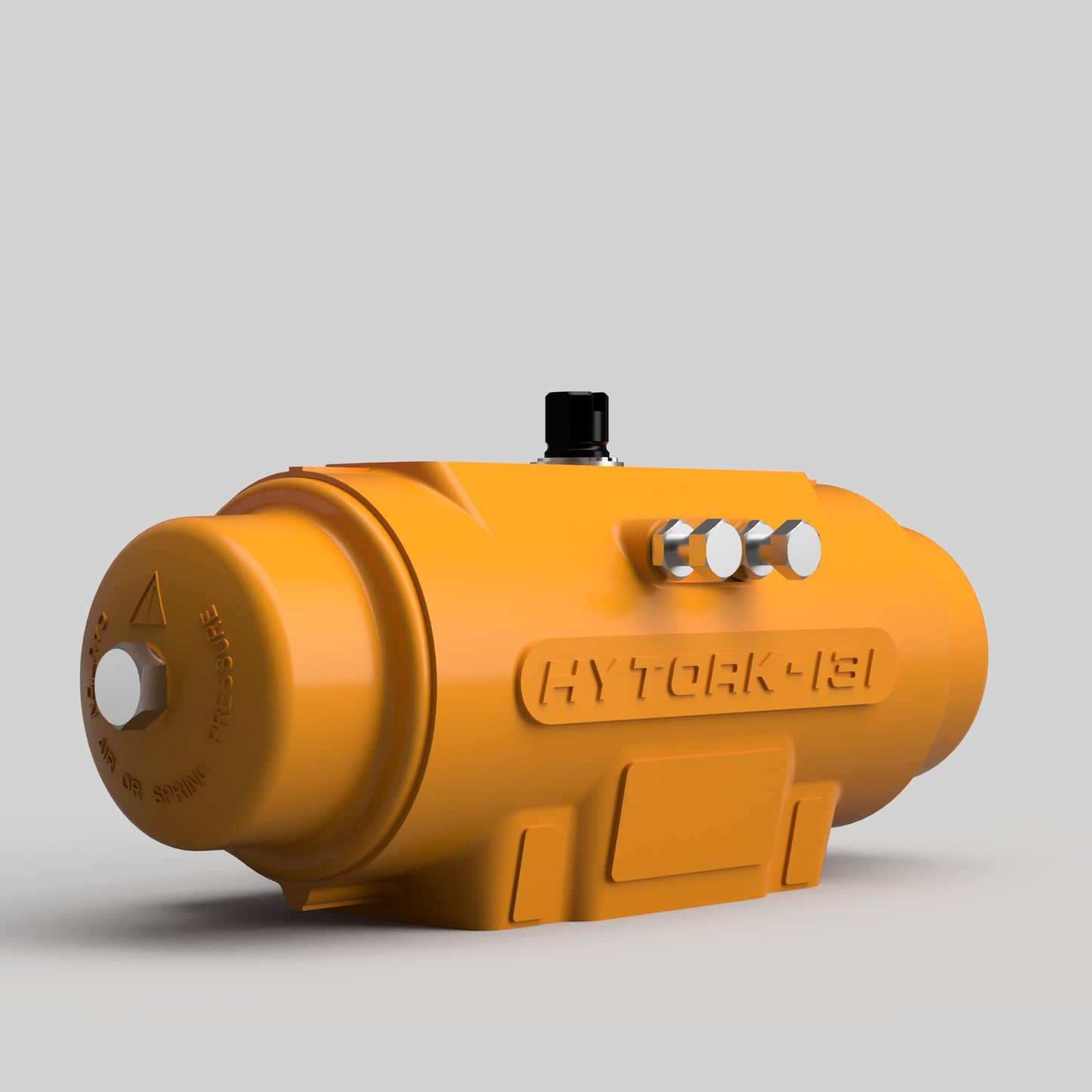

Hytork XL Spring Return Rack & Pinion Pneumatic Actuator

Hytork XL Spring Return Rack & Pinion Pneumatic Actuator

Regular price £340.80
Regular price Sale price £340.80
Sale Sold out
VAT Included
Size
Spring Rating

Product Description

The Hytork XL Spring Return Actuator represents the pinnacle of engineering excellence, designed to provide unparalleled reliability and performance in the automation of valve operations. Crafted with industrial-grade materials, this actuator offers a robust solution for facilitating the precise control of fluid flow in various applications. Its spring-return mechanism ensures fail-safe operation, automatically returning the valve to a safe position in the event of power loss.

Features

The Hytork XL features an innovative SAFEKEY system (patented), incorporating a flexible stainless steel key within an internally machined keyway. This unique design safeguards against external contamination while also eliminating stress concentrations that result from point loading.

The internal components of actuators are shielded against corrosion by CEREMIGARD, which provides a ceramic-like coating made of Di-Aluminium Tri-Oxide (Al2O3).

End caps and housing come standard with a powder-coated surface treatment, offering enhanced protection in harsh environments.

Every moving component is safeguarded by DURASTRIP bearings that are permanently lubricated, ensuring a reduction in friction and an extension of the operational lifespan. These bearings are designed to last, providing enduring protection against wear and tear, thus enhancing the cycle life of the machinery.

Specifications

Power Source: Pneumatic
Product Type: Pneumatic Rack and Pinion Actuator
Actuation: Quarter-turn
Certifications: ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3 IP66/67
Control Type: On/Off, Positioning, Modulating, ESD
Valve Type: Ball, Butterfly, Plug and any Other Quarter Turn Applications
Operating Temperature: Standard -20°C to +100°C
Torque: 12 sizes; 19 to 3232 Nm (167 to 28500 lbf.in)
Operating Pressure: up to 8.3 bar / 120 psi
View full details

  • High Strength

    Exceptional mechanical strength engineered to endure substantial loads under external forces such as shock or impact. Perfectly suited for demanding environments like mining or construction sites, ensuring enduring resilience.

  • Compact Design

    This industrial pneumatic actuator, the Hytork XL, features a compact design and easy mounting, ensuring you don't compromise on performance for its size. It's geared towards enhancing production and profitability by minimising downtime and maximising efficiency.

  • Easy Integration

    The bi-directional travel stops facilitate convenient adjustment of valve stroke, thereby averting premature valve failures. Our Pneumatic Actuators are compatible with various standard ancillary components including solenoid valves, position switches, gauges, and pressure regulators.
